Yukon Ultimate 88 Axle Kit Installation

Have a Jeep with a Dana 35, want more strength then a Dana 44, want to get rid of those pesky c-clips then maybe the Ford 8.8 from a Ford Explorer with a Yukon Ultimate 88 Kit is something you might want to look into. This kit eliminates the factory c-clips and converts the housing to use two 4340 Chrome-Moly bolt in axles and at the same time setting the wheel mounting surface to roughly 61-3/8 bringing it closer to the factory spec. Don’t have a welder, not to worry it’s not needed, just a little cutting to remove the factory axle bearing seat and the result is a super strong setup that will take a serious beating.

(As a side note I already had removed my axle to do other work to it. Hence the reason it was not under my jeep when this work was done)

Required Tools

Safety Glasses

Jack and Jack Stands

Wheels Chocks


Cut off Wheel (Hack Saw, Band Saw)

Torque Wrench

Shop Rags

Deburring Tool (Files – Flat and Round)

Appropriate wrenches, Scewdrivers, Socket Set (9/16)

Hydraulic Press


Dead Blow Hammer

Emery Cloth

Permatex “The Right Stuff”

Red Lock Tight

Wire Brush

Slide Hammer

Bearing Puller

Axle Grease

Gear Oil

Oil Catch Pan


As with any project check to make sure you have all the pieces that should be in the box.

Yukon 88 Ultimate Shipping BoxYukon 88 Axle DriversYukon 88 Axle Passenger SideYukon Ultimate 88 Hardware

Next is to gather your tools.

Impact and WrenchSlide Hammer & Bearing PullerBandsawShop Press

If working from the ground, chock the front wheels to stop the jeep from rolling.

Jack up the axle and place the jack stands securely under the axle.

Remove rear wheels

Drain differential fluid from housing.Rear Solid Diff Cover

Remove Differential cover

8.8 Cover Removed

Remove cross pin (be very careful when removing the cross pin bolt, because this can break, having a back up might not be a bad idea)

Remove calipers

Remove rotors

Push in axles and remove c-clips

Remove the axles and place a rag into the ends of the axle tubes to prevent junk from entering.

Remove the caliper bracket and dust shield assemblies

Remove outer housing seals and wheel bearings

Wheel Bearings Removed

Clean and inspect the housing ends. Note that there is a small shoulder area as well as a tube that houses the bearing and seal.

Cut the ends of the house flush to the shoulder.

Rough Cut

If necessary use a grinder to finish the cut flush with the shoulder.

Cleaned up cut

De-Burr the inside and outside of the cut.

Remove the shop rags from the housing and clean out any debris.

Silicone the recess on the back side of the bearing seats.

Silicone Back

Press the bearing seats onto the housing with the flat side up.

Bear race ready for install

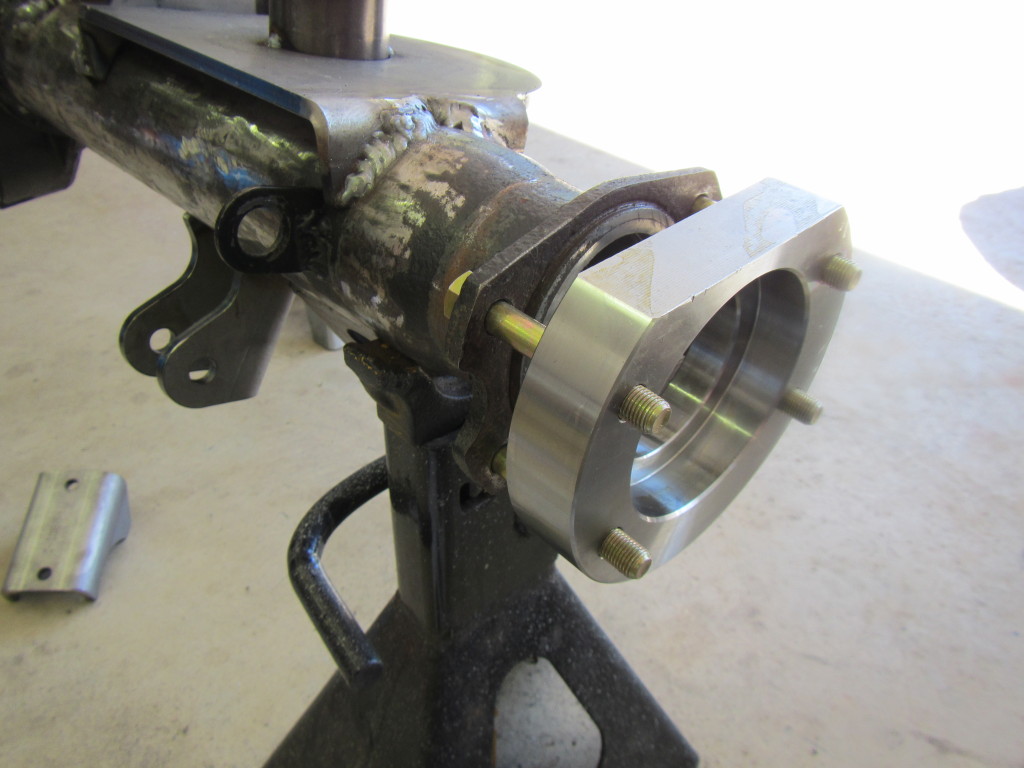

Use the supplied 3/8″ bolts and slide them in through the back.

Slide the 4 large 7/16″ spacer nuts over the bolts and thread on the 4 – 3/8″ – 24 non-locking nut

Pressed on ends

Tighten the nuts in a cross pattern to seat the bearing seats to the housing.

Set bearing housing

Remove all 8 set up nuts and set them aside.

Slide the caliper bracket and dust shield assemblies over the 4 bolts.

The axles are double drilled for 5×4 1/2″ & 5×5 1/2″ bolt pattern that matches your application.

Checking lug pattern

Before installing the wheel studs, thoroughly clean the threads in the axle flange and on studs to remove oil and grease. Apply a drop of high strength thread locking compound to the threads near the head of the studs.

Thread the 5 – 1/2″ studs into the flange of each axle and tighten to 90 ft. lbs

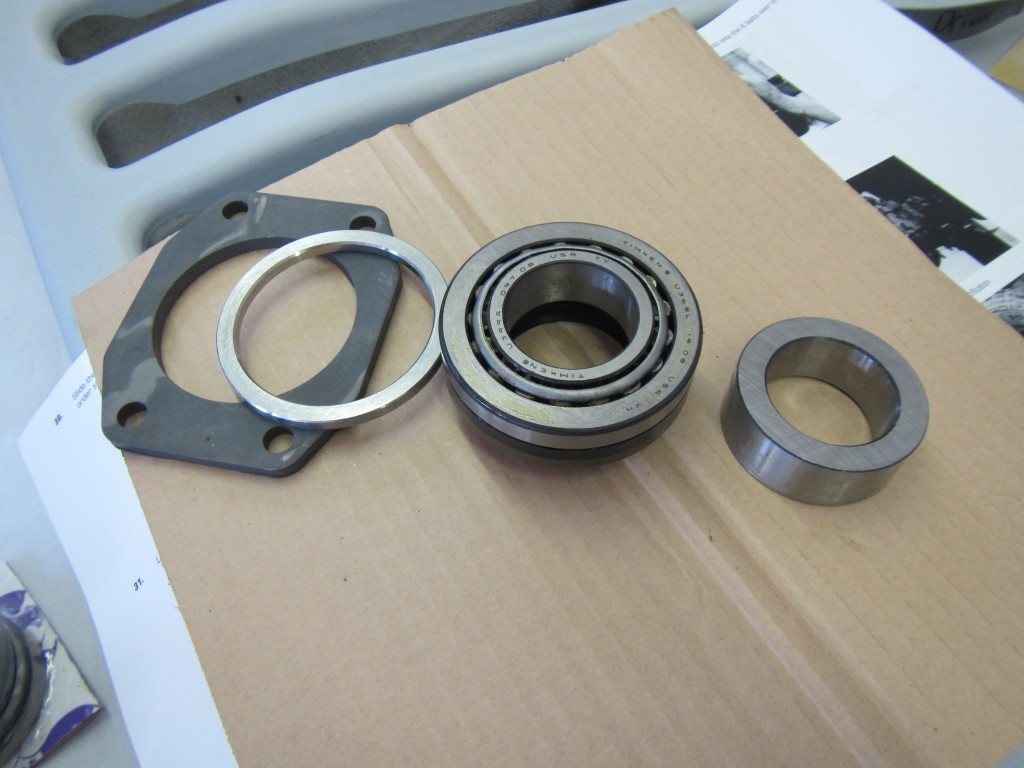

Slide the retainer plate, spacer, bearing seal, bearing, and bearing retainer, onto the axle in the order shown below.

Stacking order

Using a hydraulic press, press the bearings onto the axles.

Bearing stack

Before pressing

Apply a thing coat of silicone to the seal areas.

Slide the axle shaft assemblies into the rear axle. The long shaft is for the driver’s side, short shaft is for the passenger’s side.

Test seating axle

Using the access hole on the axle flange, thread the 3/8″ grade c lock nuts onto the 4 bolts over the retainer plates.

Torque nuts to 40 ft. lbs.

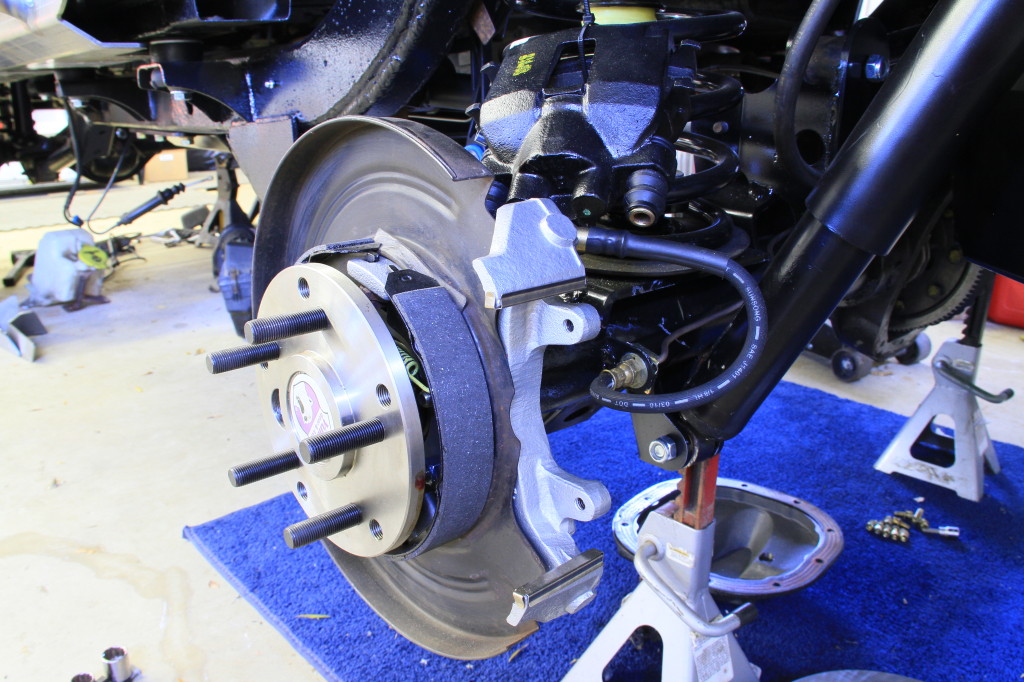

Slide on the brake rotors.

Dust ShieldRotor and caliper

Mount wheels and tires and torque to factory specification.

Re-install cross pin.

Re-install diff cover.

Fill differential with gear oil.
